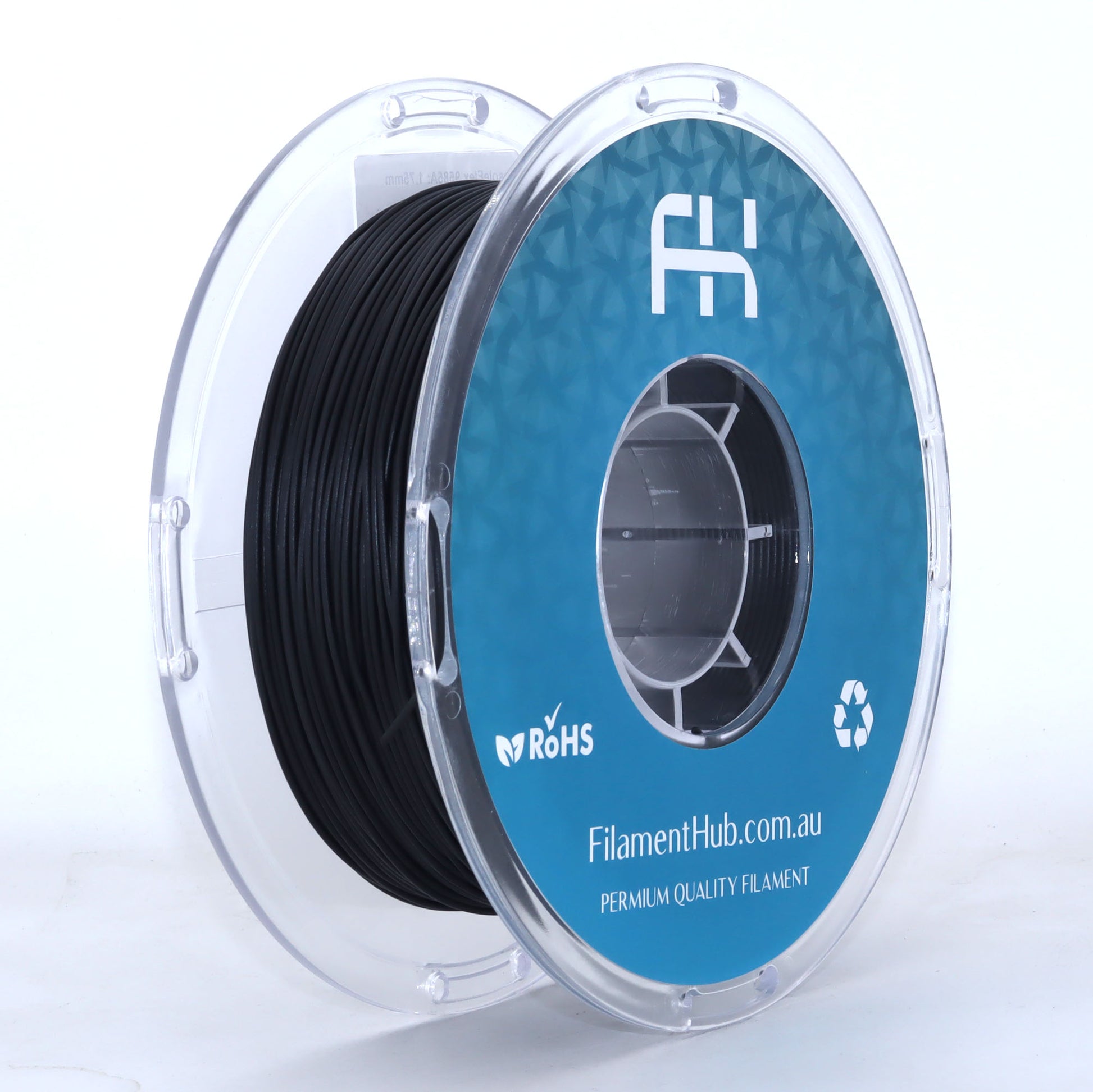

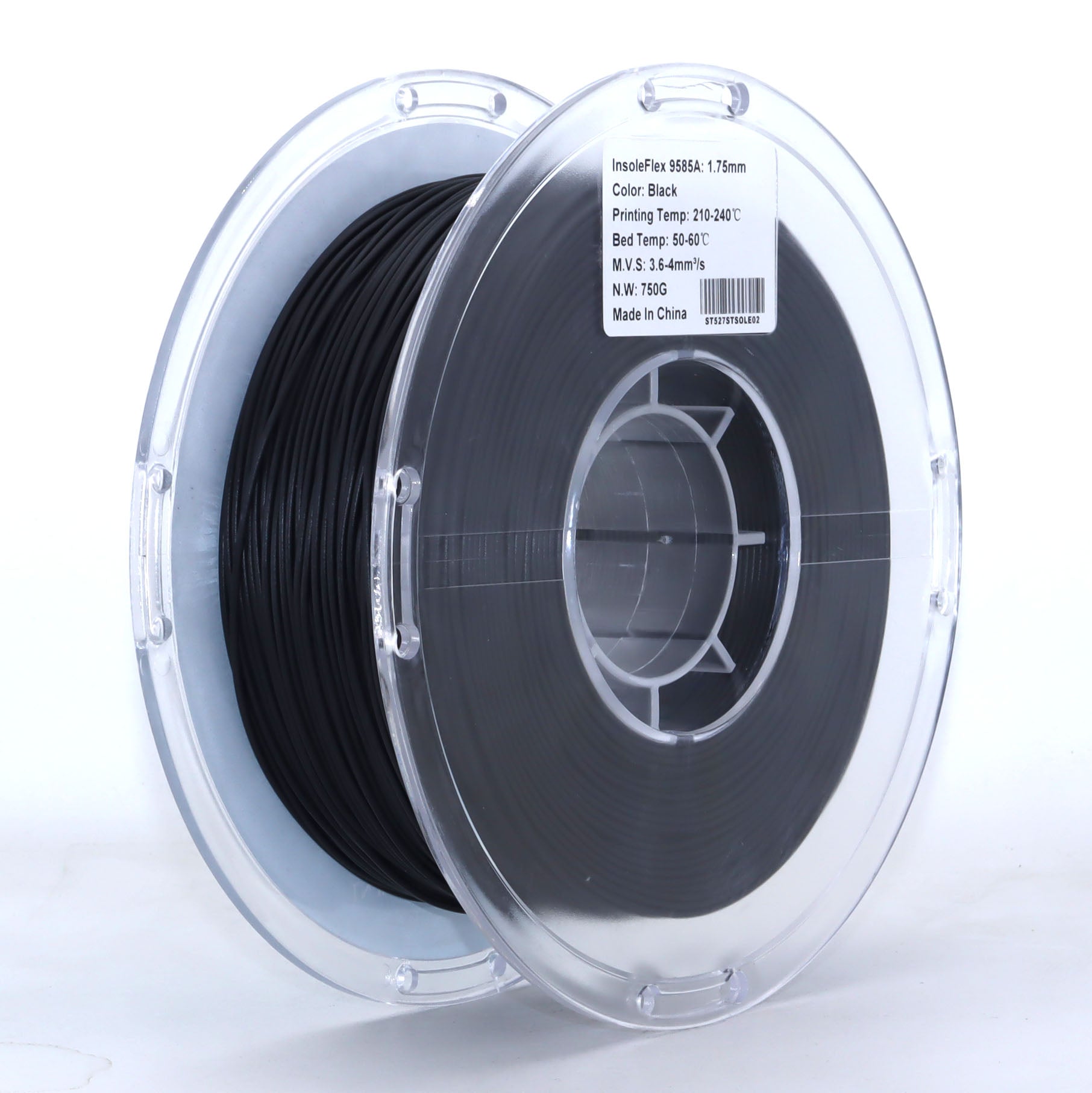

InsoleFlex 9585A - Black
InsoleFlex 9585A - Black
Couldn't load pickup availability
About InsoleFlex 9585A
InsoleFlex 9585A is a specialised TPU filament engineered for 3D printed insoles and comfort-focused wearable parts. While the filament itself is 95A hardness, it is formulated to print into finished parts around 85A, providing enhanced cushioning, flexibility, and under-foot comfort compared to standard TPU. Easy to print and highly reliable, InsoleFlex 9585A is ideal for functional footwear inserts, orthotics, sandals, and wearable cushioning designs.
⚠️ Please Note: This filament is supplied on a 750g roll (0.75kg net weight).
InsoleFlex 9585A TPU Filament Specifications (1.75mm)
| Property | Value |
|---|---|
| Material Type | TPU (Flexible) |
| Filament Hardness | 95A (prints to ~85A) |
| Printing Temperature | 210-235 °C |
| Bed Temperature | 40-60 °C |
| Enclosure | Not required |
| Hardened Nozzle | Not required |
| Filament Diameter | 1.75 mm |
| Tolerance | ±0.02mm |
| Net Weight | 750 g |
| Gross Weight | ~1.1 kg |
| Drying Temperature | 50-55 °C |
| Drying Time | 4-6 hours |
| Empty Spool Weight | 256 g |
Final softness and flexibility may vary depending on print settings, infill, wall count, and part geometry. Softer results are typically achieved with lower infill and thicker layer heights.
Compatible with: Bambu Lab Series Printers (H2D, H2S, X1C, P1S, A1, A1 Mini), Prusa MK4, Prusa XL, Creality Ender 3, and most FDM 3D printers using 1.75 mm TPU filament. Direct-drive extruders recommended.
Applications: 3D printed insoles, shoe inserts, orthotics, sandals, wearable cushioning parts, and comfort-focused footwear components.
