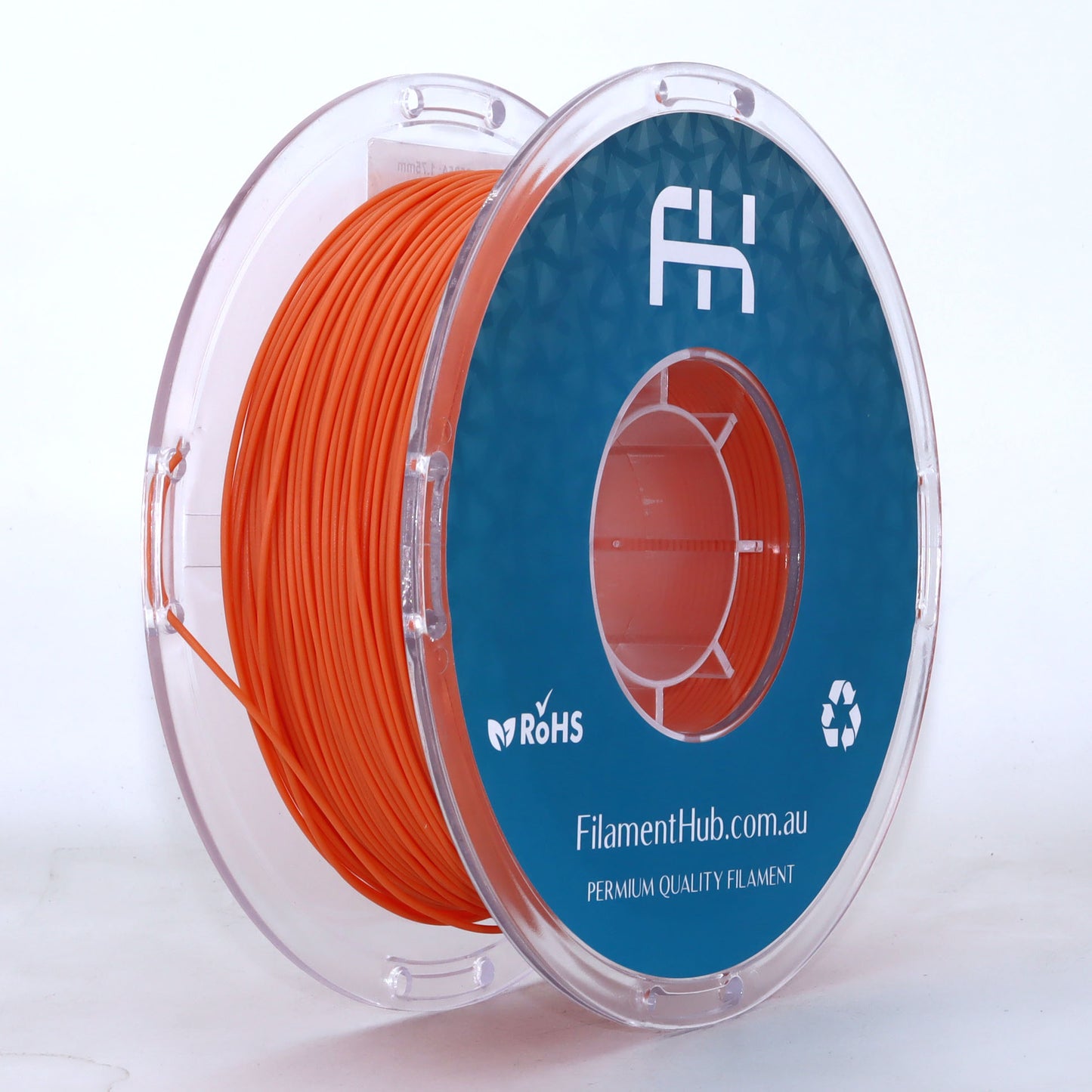

InsoleFlex 9585A - Orange
InsoleFlex 9585A - Orange
Couldn't load pickup availability
About InsoleFlex 9585A
InsoleFlex 9585A is a specialised TPU filament engineered for 3D printed insoles and comfort-focused wearable parts. While the filament itself is 95A hardness, it is formulated to print into finished parts around 85A, providing enhanced cushioning, flexibility, and under-foot comfort compared to standard TPU. Easy to print and highly reliable, InsoleFlex 9585A is ideal for functional footwear inserts, orthotics, sandals, and wearable cushioning designs.
InsoleFlex 9585A TPU Filament Specifications (1.75mm)
| Property | Value |
|---|---|
| Material Type | TPU (Flexible) |
| Filament Hardness | 95A (prints to ~85A) |
| Printing Temperature | 210–235 °C |
| Bed Temperature | 40–60 °C |
| Enclosure | Not required |
| Hardened Nozzle | Not required |
| Filament Diameter | 1.75 mm |
| Tolerance | ±0.02mm |
| Net Weight | 750 g |
| Gross Weight | ~1.2 kg |
| Drying Temperature | 50–55 °C |
| Drying Time | 4–6 hours |
| Empty Spool Weight | 256 g |
Final softness and flexibility may vary depending on print settings, infill, wall count, and part geometry. Softer results are typically achieved with lower infill and thicker layer heights.
Compatible with: Bambu Lab Series Printers (H2D, H2S, X1C, P1S, A1, A1 Mini), Prusa MK4, Prusa XL, Creality Ender 3, and most FDM 3D printers using 1.75 mm TPU filament. Direct-drive extruders recommended.
Applications: 3D printed insoles, shoe inserts, orthotics, sandals, wearable cushioning parts, and comfort-focused footwear components.
